Product Summary

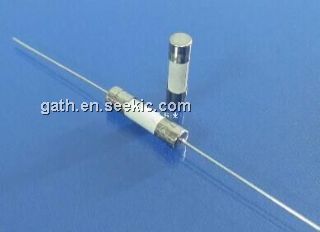

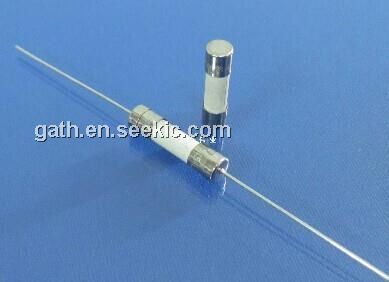

Product description:
Product features: Fast - Acting Type
Product model: 5 ck
Product features
The material
Ontology: ceramic tube
Lead: tinned copper wire
Copper hat: brass nickel plated
Fuse: alloy wire
Operating temperature and 55 ℃ to + 125 ℃ (need to consider the temperature reduction)
weldability
260 ℃, ≦ 3 s. (wave/wave soldering)
350 plus or minus 10 ℃, ≦ 3 s. (soldering iron/iron welding)
Welding heat resistant
260 ℃, 10 s. (wave/wave soldering)
350 ℃, 5 s. (soldering iron/iron welding)
Storage conditions
In the temperature + 10 ℃ ~ 60 ℃, relative humidity ≦ 75% airtight conditions can be stored for 3 years.
In the temperature + 10 ℃ ~ 60 ℃, relative humidity of 95% not under the open can store up to 30 days.
Parametrics
Product description:
Product features: Fast - Acting Type
Product model: 5 ck
Product features
The material
Ontology: ceramic tube
Lead: tinned copper wire
Copper hat: brass nickel plated
Fuse: alloy wire
Operating temperature and 55 ℃ to + 125 ℃ (need to consider the temperature reduction)
weldability
260 ℃, ≦ 3 s. (wave/wave soldering)
350 plus or minus 10 ℃, ≦ 3 s. (soldering iron/iron welding)
Welding heat resistant
260 ℃, 10 s. (wave/wave soldering)
350 ℃, 5 s. (soldering iron/iron welding)
Storage conditions
In the temperature + 10 ℃ ~ 60 ℃, relative humidity ≦ 75% airtight conditions can be stored for 3 years.
In the temperature + 10 ℃ ~ 60 ℃, relative humidity of 95% not under the open can store up to 30 days.
Diagrams
Rated current 100 ma ~ 30 a
rated current % 100% 135% 200%
melting time min 4 hours max 1 hour max 5s
