Product Summary



Storage conditions At the temperature of +10 DEG ~60 DEG, relative humidity is less than or equal to 75% under sealed conditions can be stored for 3 years.

At the temperature of +10 DEG ~60 DEG C, relative humidity of 95% non open up can be stored for 30 days.




Parametrics

The material

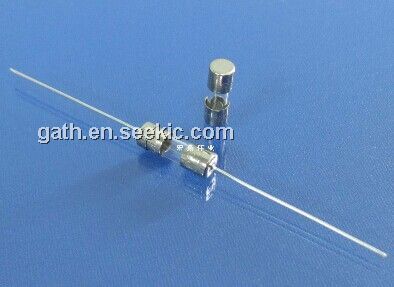

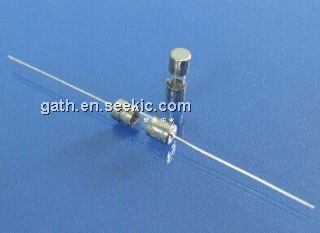

Ontology: glass tube

Lead: tinned copper wire

Copper hat: brass nickel plated

Fuse: alloy wire


Operating temperature and 55 ℃ to + 125 ℃ (need to consider the temperature reduction)


weldability

260 ℃, ≦ 3 s. (wave/wave soldering)

350 plus or minus 10 ℃, ≦ 3 s. (soldering iron/iron welding)


Welding heat resistant

260 ℃, 10 s. (wave/wave soldering)

350 ℃, 5 s. (soldering iron/iron welding)
