Product Summary

COB type, suitable for lead-free solder reflow

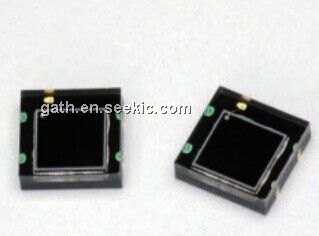

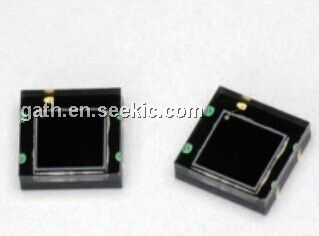

S12158-01 ct silicon PIN photodiode is suitable for the visible near infrared wave band, compatible with lead-free solder reflow process. A small, thin lead-free packaging can reduce its on PCB SMT area.
features
- COB type, small and thin lead-free packaging
- suitable for lead-free solder reflow
- sensitive area: 2.77 x 2.77 mm
- high sensitivity: 0.7 A/W (lambda = 960 nm)

Parametrics

Sensitive area of 2.77 x 2.77 mm
Pixel number 1
Encapsulating epoxy glass
Encapsulation type SMT
20 V reverse bias voltage (maximum)
Spectral response range of 320 to 1100 nm
Peak wavelength of 960 nm
The sensitivity of 0.7 A/W
Dark current 10 pA
Cut-off frequency 25 MHz
Junction capacitance 15 pF
Test conditions Ta = 25 ℃, unless specified otherwise in the typical values. Sensitivity: lambda = lambda p, dark current: VR = = 12 V, the cut-off frequency, VR = 12 V, junction capacitance: VR = 12 V
