Product Summary

The SP10150S is a 150V 10.0 AMP schottky barrier rectifier.

Parametrics

SP10150S absolute maximum ratings: (1)Maximum Recurrent Peak Reverse Voltage, VRRM: 150V; (2)Working Peak Reverse Voltage, VRSM: 150V; (3)Maximum DC Blocking Voltage, VDC: 150V; (4)Maximum Average Forward Rectified Current, IF: 10A; (5)Typical Junction Capacitance, CJ: 450pF; (6)Typical Thermal Resistance, RθJA: 4.0℃/W; (7)Voltage Rate Of Chance, dv/dt: 10000V/us; (8)Operating Storage Temperature Range, TJ: -50 to +150℃; (9)Temperature Range, TSTG: -65 to +175℃.

Features

SP10150S features: (1)Low forward voltage drop; (2)High current capability; (3)High reliability; (4)High surge current capability; (5)Epitaxial construction.

Diagrams

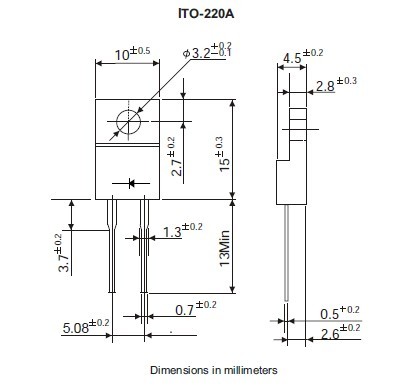

SP10150S package Dimensions
