Product Summary

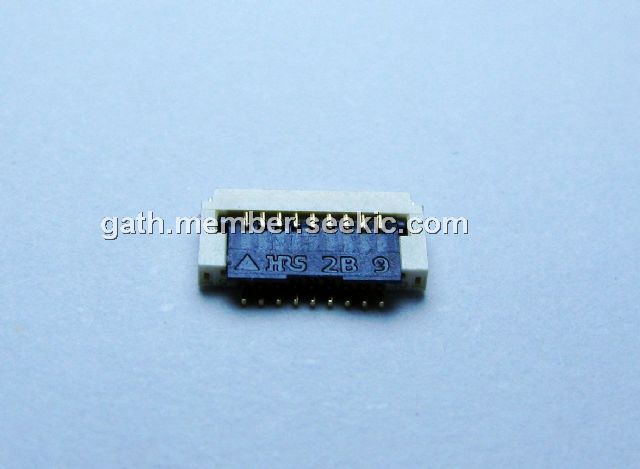

The TF12-9S-0.5SH is a device from Hirose Electric. It is widely used in note PC, LED BLU Interconnecting, compact device for interconnecting the main circuite board with the HHP, LCD, PDA, HDD or other device.
Parametrics
TF12-9S-0.5SH absolute maximum ratings: (1)Current: 0.5A; (2)Voltage: 50V; (3)Operating temperature range: -55℃ to +85℃; (4)Storage temperature range: 10℃ to +50℃.
Features
TF12-9S-0.5SH features: (1)LOW PROFILE FPC products are high in balgeoryeok / MISS ALIGN Prevention; (2)BACK-FLIP by the way excellent workability / Contact Reliability; (3)LOW PROFILE FPC products inserted in the superior workability; (4)Combined structure of the individual terminals and SLIDER SLIDER Preventing escape; (5)Of terminal and mounting bracket before and after the fixed PCB PATTERN strength and improve the soldering BALANCE; (6)Ni BARRIER LOW PROFILE plated terminals in the product prevents ascending FLUX; (7)Upper CASE, SLIDER dorsal Mount hwakyonghan to reduce adsorption PICK-UP ERROR.

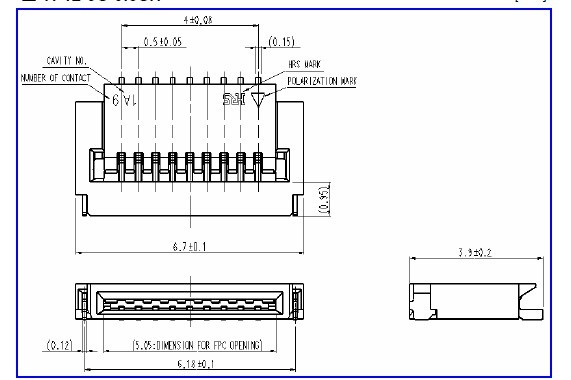

Diagrams
 |
