CY8C20111-SX1I

Product Summary

The CY8C20111-SX1I is a controller. The CapSense Express controllers support two capacitive sensing (CapSense) buttons and two general purpose outputs in CY8C20111-SX1I and one CapSense button and one general purpose output in CY8C20111-SX1I. The CY8C20111-SX1I functionality is configured through the I2C port and can be stored in on-board nonvolatile memory for automatic loading at power on. The digital outputs are controlled from CapSense inputs in factory default settings, but are user configurable for direct control through I2C.

Parametrics

CY8C20111-SX1I absolute maximum ratings: (1)TSTG Storage temperature: –55, 25, +100 ℃; (2)TBAKETEMP Bake Temperature: – 125 °C; (3)tBAKETIME Bake Time : 72 Hours; (4)TA Ambient temperature with power applied: –40 , +85 °C; (5)VDD Supply voltage on VDD relative to VSS: –0.5 , +6.0 V; (6)VIO DC input voltage: VSS – 0.5, VDD + 0.5 V; (7)VIOZ DC voltage applied to tri-state: VSS – 0.5, VDD + 0.5 V; (8)IMIO Maximum current into any GPIO pin: –25, +50 mA; (9)ESD Electro static discharge voltage: 2000 V ; (10)LU Latch up current: 200 mA.

Features

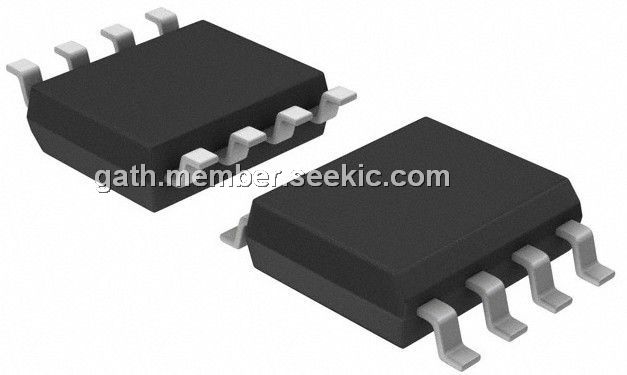

CY8C20111-SX1I features : (1)Capacitive button input tied to a configurable output: Robust sensing algorithm; High sensitivity, low noise; Immunity to RF and AC noise; Low radiated EMC noise; Supports wide range of input capacitance, sensor shapes, and sizes; (2)Target Applications: Printers; Cellular handsets; LCD monitors; Portable DVD players; (3) Industry s best configurability: Custom sensor tuning; Output supports strong 20 mA sink current; Output state can be controlled through I2C or directly from CapSense input state; Run time reconfigurable over I2C; (4)Advanced features: Plug-and-play with factory defaults – tuned to support up to 1 mm overlay; Nonvolatile storage of custom settings; Easy integration into existing products – configure output to match system; No external components required; World class free configuration tool; (5)Wide range of operating voltages: 2.45 V to 2.9 V; 3.10 V to 3.6 V; 4.75 V to 5.25 V; (6)I2C communication: Supported from 1.8 V; Internal pull-up resistor support option; Data rate up to 400 kbps; Configurable I2C addressing; (7)Industrial temperature range: –40 °C to +85 °C; (8)Available in 8-Pin SOIC package.

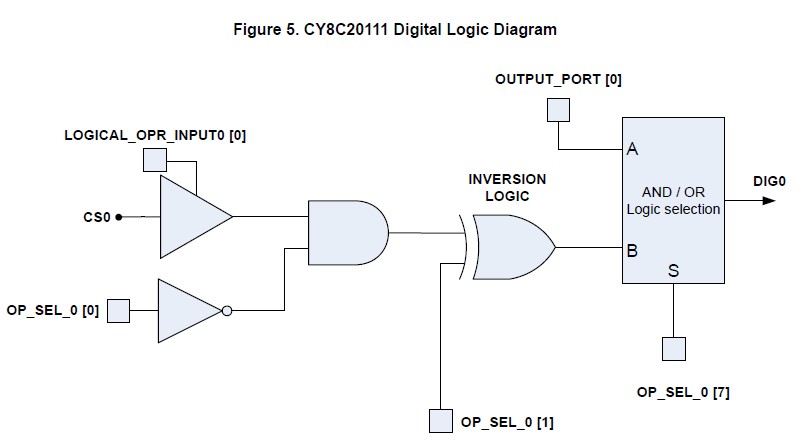

Diagrams
