Product Summary

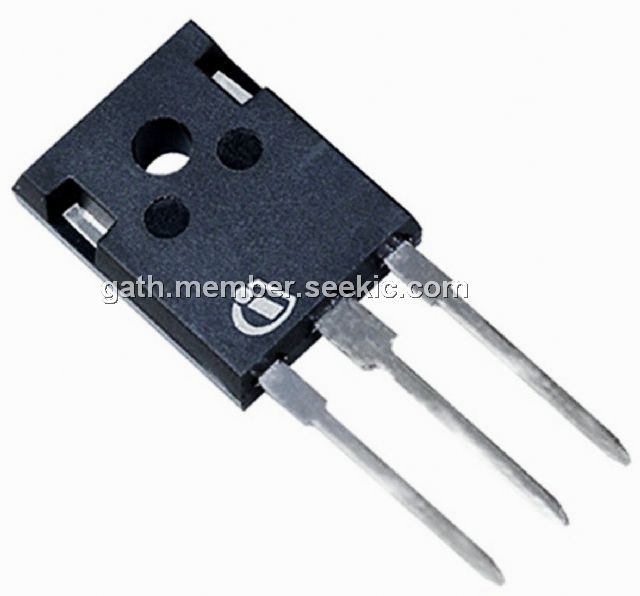

The SPW35N60C3 is a coolMOSTM power transistor. It adpots new revolutionary high voltage technology. The package is PG-TO247. The ordering code is Q67040-S4673.

Parametrics

SPW35N60C3 absolute maximum ratings: (1)Continuous drain current, Tc=25℃, Id: 34.6A; (2)Continuous drain current, Tc=100℃, Id: 21.9A; (3)Pulsed drain current, Tc=25℃, Id,pulse: 103.8A; (4)Avalanche energy, single pulse, Id=17.3 A, Vdd=50V, Eas: 1500mJ; (5)Avalanche energy, repetitive Tar, Id=34.6A, Vdd=50V, EAR: 1.5A; (6)Avalanche current, repetitive t AR, Iar: 34.6A; (7)Drain source voltage slope, Id=34.6 A, VDS=480 V, T j=125℃, dv /dt: 50V/ns; (8)Gate source voltage, static, VGS: ±20V; (9)Gate source voltage, AC (f >1 Hz), VGS: ±30V; (10)Power dissipation, Tc=25℃, Ptot: 313W; (11)Operating and storage temperature Tj, Tstg: -50 to 155℃.

Features

SPW35N60C3 features: (1)New revolutionary high voltage technology; (2)Ultra low gate charge; (3)Periodic avalanche rated; (4)Extreme dv /dt rated; (5)Ultra low effective capacitances; (6)Improved transconductance Maximum; (7)pb-free lead plating; (8)ROHS compliant.

Diagrams

SPW35N60C3 diagram block
