Product Summary

The L200CV is a regulator. The L200CV is a monolithic integrated circuit for voltage and current programmable regulation. The L200CV is available in Pentawatt[ package or 4-lead TO-3 metalcase.Current limiting, powerlimiting, thermal shutdown and input overvoltage protection (up to 60 V) make the L200CV virtually blow-out proof. The L200CV can be used to replace fixed voltage regulators when high output voltage precision is required and eliminates the need to stock a range of fixed voltage regulators.

Parametrics

L200CV absolute maximum ratings: (1)Vi DC Input Voltage: 40 V; (2)Vi Peak Input Voltage (10 ms): 60 V; (3)DVi-o Dropout Voltage: 32 V; (4)Io Output Current: internally limited; (5)Ptot Power Dissipation: internally limited; (6)Tstg Storage Temperature: -55 to 150 °C; (7)Top Operating Junction Temperature : -25 to 150 °C.

Features

L200CV features: (1)adjustable output current up to 2 a (guaranteed up to tj = 150 °c); (2)adjustable output voltage down to 2.85 v; (3)input overvoltage protection (up to 60 v, 10 ms); (4)short circuit protection; (5)output transistors.o.a.protection; (6)thermal overloadprotection; (7)lowbias current on regulationpin; (8)lowstandby current drain.

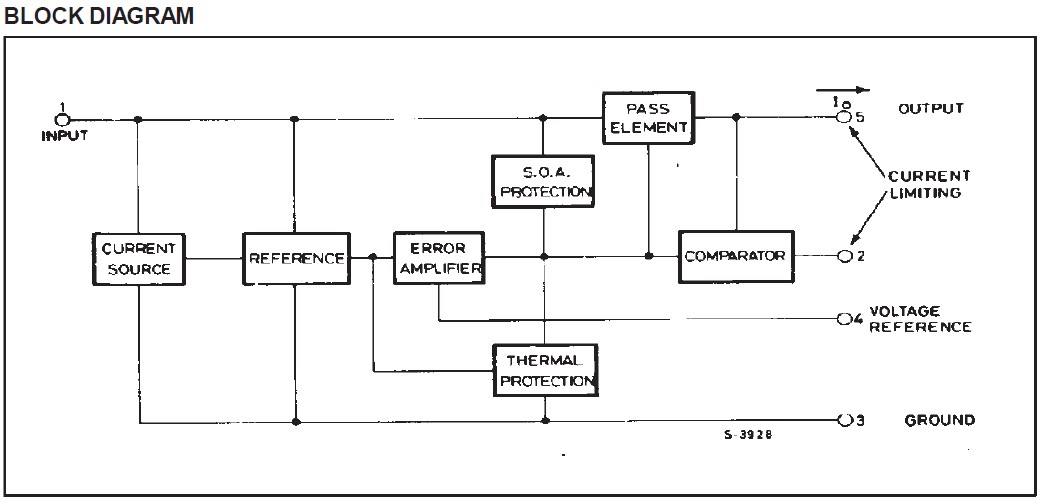

Diagrams

L200CV pin connection

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity
L200CV
L200CV

STMicroelectronics

Linear Regulators - Standard Adj Voltage/Current

Data Sheet
