Product Summary
The rectifier STTH6003CW is suited for Switch Mode Power Supply and high frequency DC to DC converters. Packaged either in ISOTOP or in TO-247, this device is intended for use in low voltage, high frequency inverters, free wheeling operation, welding equipments and telecom power supplies.
Parametrics
STTH6003CW absolute maximum ratings: (1)VRRM, Repetitive peak reverse voltage: 300 V; (2)IF(RMS), RMS forward current: 60 A; (3)IF(AV), Average forward current: Tc =135℃, Per diode: 30A; δ=0.5, Per device, 60A; (4)IFSM, Surge non repetitive forward current, tp = 10ms sinusoidal: 300 A; (5)IRSM, Non repetitive peak reverse current, tp =100 μs square: 4A; (6)Tstg, Storage temperature range: - 65 to + 175 ℃; (7)Tj, Maximum operating junction temperature: 175 ℃.
Features
STTH6003CW features: (1)combines highest recovery and voltage performance; (2)ultra-fast, soft and noise-free recovery; (3)insulation voltage: 2500 vrms; (4)capacitance: < 45 pf; (5)low inductance and low capacitance allow simplified layout.

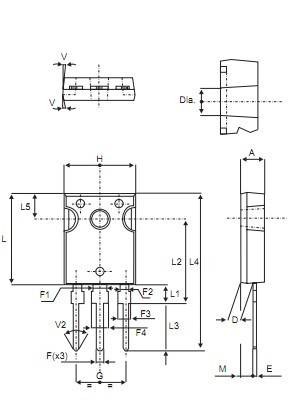

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 STTH6003CW |
STMicroelectronics |
Rectifiers 2X30 Amp 300 Volt BULK |
Data Sheet |
|
|
||||||||||||||||||
