Product Summary

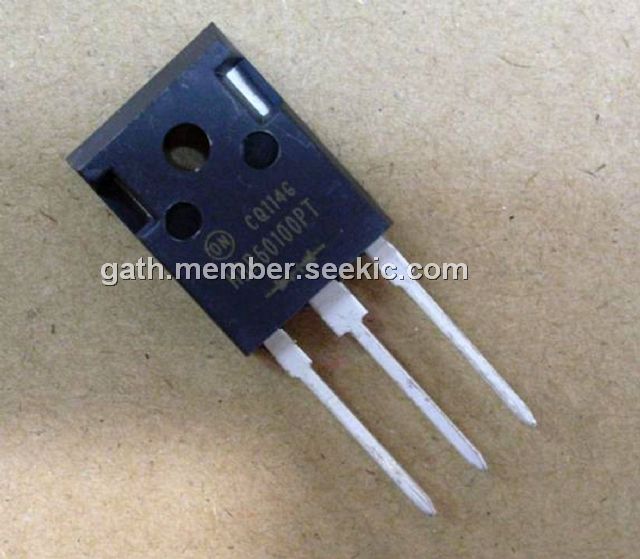

The MBR60100PT is a power schottky rectifier. It is widely used in AC/DC switching adaptor and other switching power supply, as well as SMPS.
Parametrics
MBR60100PT absolute maximum ratings: (1)Average Forward Current, IF(AV): 60A; (2)Repetitive Peak Reverse Voltage, VRRM: 100V; (3)Peak Forward Surge Current, IFSM: 500A; (4)Forward Voltage Drop, VF(max): 0.69V; (5)Operating Temperature,Tj: -50 to +175℃; (6)Storage Temperature, Tstg: -50 to +150℃.
Features
MBR60100PT features: (1)Plastic package has Underwriters Laboratory Flammability Classifications 94V-0; (2)High Junction Temperature Capability; (3)Low forward voltage, high current capability; (4)High surge capacity; (5)Low power loss, high efficiency; (6)ESD performance human body mode > 8 KV.

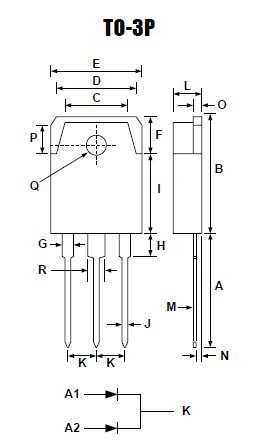

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 MBR60100PT |
Taiwan Semiconductor |
Schottky (Diodes & Rectifiers) 60A 100V |
Data Sheet |
|
|
||||||||||||
