Product Summary

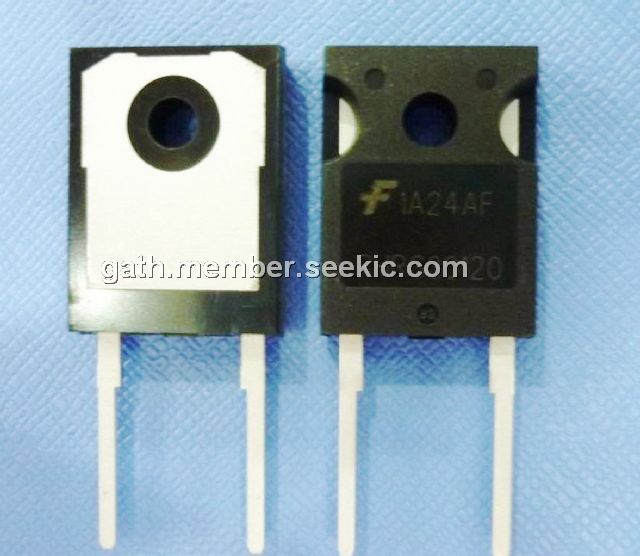

The RHRG30120 is a hyperfast diode with soft recovery characteristics (trr < 65ns). It has half the recovery time of ultrafast diodes and is of silicon nitride passivated ion-implanted epitaxial planar construction. The RHRG30120 is intended for use as a freewheeling/clamping diode and rectifier in a variety of high frequency switching power supplies and other power switching applications. Its low stored charge and hyperfast soft recovery minimize ringing and electrical noise in many power switching circuits, thus reducing power loss in the switching transistors.
Parametrics
RHRG30120 absolute maximum ratings: (1)Peak Repetitive Reverse Voltage, VRRM: 1200V; (2)Working Peak Reverse Voltage, VRWM: 1200V; (3)DC Blocking Voltage, VR: 1200V; (4)Average Rectified Forward Current(TC = 78℃), IF(AV): 30A; (5)Repetitive Peak Surge Current (Square Wave, 20kHz), IFRM: 60A; (6)Nonrepetitive Peak Surge Current (Halfwave, 1Phase, 60Hz), IFSM: 300A; (7)Maximum Power Dissipation, PD: 125W; (8)Avalanche Energy, EAVL: 30mJ; (9)Operating and Storage Temperature, TSTG,TJ: -65to+175℃.
Features
RHRG30120 features: (1)Hyperfast with Soft Recovery: <65ns; (2)Operating Temperature: 175℃; (3)Reverse Voltage: 1200V; (4)Avalanche Energy Rated; (5)Planar Construction.
Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 RHRG30120 |
Fairchild Semiconductor |
Rectifiers Hyperfast Pwr Rect 3a 12V |
Data Sheet |
|
|
||||||||||||
 |
RHRG30120_Q |
Fairchild Semiconductor |
Rectifiers Hyperfast Pwr Rect 30A 12V |
Data Sheet |
Negotiable |
|
||||||||||||
|
RHRG30120CC |
Fairchild Semiconductor |
Rectifiers 30A 1200V |
Data Sheet |
Negotiable |
|
||||||||||||
