Product Summary

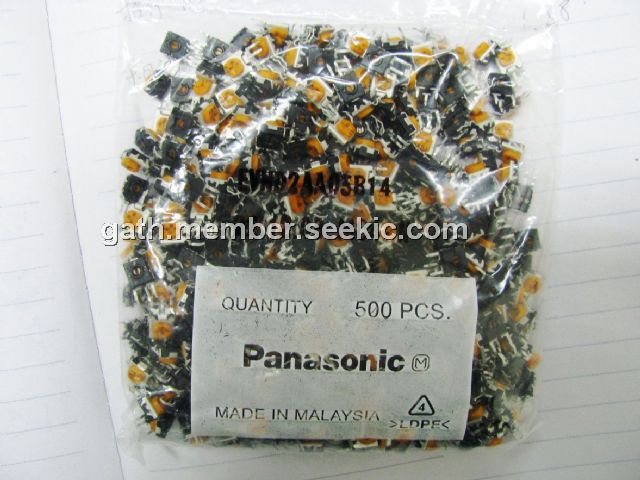

The EVND8AA03B14 is a square SMT trimmer potentiometer. It is suitable for audio visual equipment and home electrical appliances.

Parametrics

EVND8AA03B14 specifications: (1)Nominal total resistance: 100Ω to 1MΩ; (2)Resistance tolerance: ±25%; (3)Power rating: 0.2W; (4)Max. operating voltage: 50V; (5)Sliding noise: 5% max. of nominal total resistance; (6)Rotation torque: 2 to 20 mN·m (20 to 200 gf·cm).

Features

EVND8AA03B14 features: (1)4mm square series for reflow soldering; (2)Excellent mounting efficiency.

Diagrams

EVND8AA03B14 Dimensions
