Product Summary
This STPS745G single schottky rectifier is suited for Switch Mode Power Supply and high frequency DC to DC converters. It is packaged either in TO-220AC, ISOWATT220AC or D2PAK, this STPS745G is intended for use in low voltage, high frequency inverters, free wheeling and polarity protection applications.
Parametrics
STPS745G absolute maximum ratings: (1)Repetitive peak reverse voltage, VRRM: 45V; (2)RMS forward current, IF(RMS): 20A; (3)Average forward current δ= 0.5, IF(AV): 7.5A; (4)Surge non repetitive forward current, tp = 10ms sinusoidal, IFSM: 150A; (5)Repetitive peak reverse current, tp = 2 ms square F = 1kHz, IRRM: 1A; (6)Non repetitive peak reverse current, tp = 100 ms square, IRSM: 2A; (7)Storage temperature range, Tstg: -65 to +175℃; (8)Maximum operating junction temperature, Tj: 175℃; (9)Critical rate of rise of reverse voltage, dV/dt: 10000V/ms.
Features
STPS745G features: (1)very small conduction losses; (2)negligibleswitching losses; (3)extremelyfast switching; (4)insulatedpackage:ISOWATT220AC; (5)Insulating voltage = 2000VDC; (6)Capacitance= 12pF.

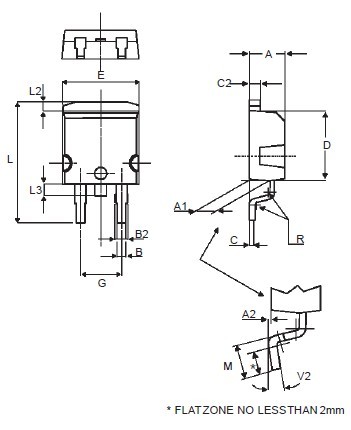

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 STPS745G |
STMicroelectronics |
Schottky (Diodes & Rectifiers) 7.5 Amp 45 Volt |
Data Sheet |
Negotiable |
|
||||||||||||
|
STPS745G-TR |
STMicroelectronics |
Schottky (Diodes & Rectifiers) 7.5 Amp 45 Volt |
Data Sheet |
|
|
||||||||||||
