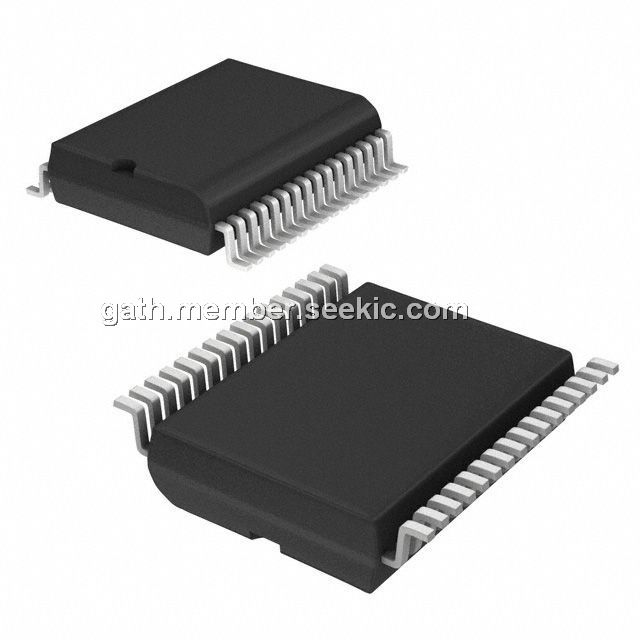

Product Summary

The TEF6606T NXP one-chip low-IF tuner continues to expand the frontiers of front-end excellence. It has been developed with our strategic partner, Catena Radio Design, together with a number of key customers. This ensures the TEF6606T offers a choice of features and performance to meet a variety of price points.

Parametrics

TEF6606T specifications: (1)Vendor: NXP Semiconductors ; (2)Category: RF/IF and RFID ; (3)Applications: AM/FM Radio Receiver ; (4)Package / Case: 32-SOIC (0.295", 7.50mm Width) ; (5)Packaging: Tube ; (6)Modulation or Protocol: AM, FM ; (7)Voltage Supply: 8.5V ; (8)Data Interface: PCB, Surface Mount ; (9)Antenna Connector: PCB, Surface Mount ; (10)Lead Free Status: Lead Free ; (11)RoHS Status: RoHS Compliant.

Features

TEF6606T features: (1)AM / FM tuner with low IF conversion; (2)PLL synthesizer with integrated VCO; (3)Integrated AM LNA with AGC and RF selectivity; (4)Stereo decoder with output for interfacing with external analog or digital audio processor; (5)Advanced weak signal processing (soft mute, stereo blend, high cut control); (6)AM / FM noise blanker (TEF6601-FM noise blanker only); (7)Signal quality detection (level, wide band AM, ultra sonic noise); (8)I2C bus control; (9)RDS demodulator and / or decoder (TEF661x only); (10)Single 8.5 V supply; (11)SO32 package; (12)Qualified in accordance with AEC-Q100; (13)Very low external component count; (14)Integrated FM LNA with AGC; (15)Allows for fast software development because of integrated radio knowledge and easy interface; (16)Very good AM / FM strong signal behavior.

Diagrams

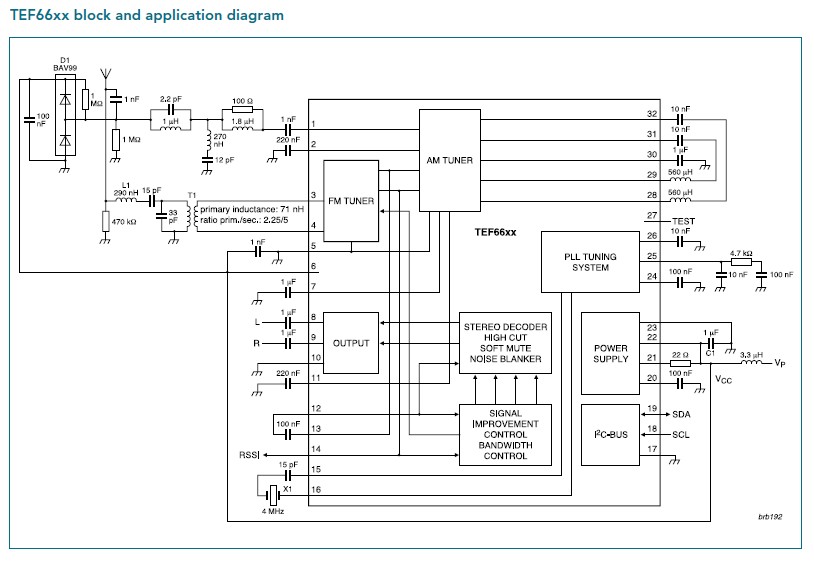

TEF6606T block diagram
