Product Summary

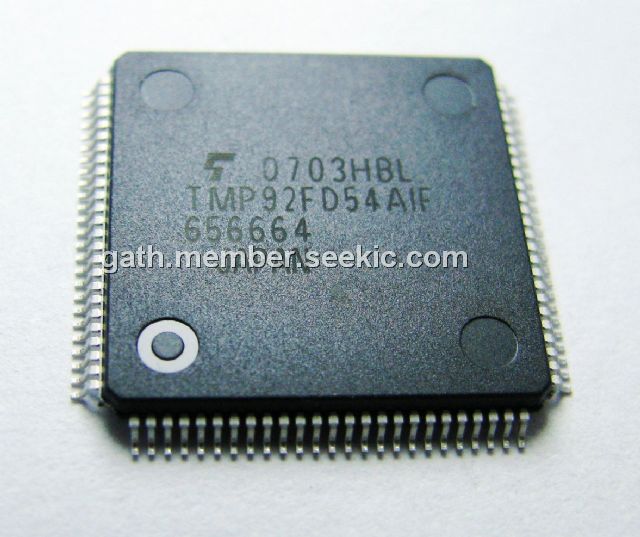

The TMP92FD54AIFG is a 32 bit Micro-controller unit(MCU).
Parametrics
TMP92FD54AIFG characteristics: (1)CPU Speed: 20 MHz; (2)Clock Frequency: 10 MHz; (3)Core Size: 32 bit; (4)EEPROM Memory Size: 512 byte; (5)Flash Memory Size: 512 Kb; (6)IC Generic Number: 92FD54; (7)Interface: I2C, UART; (8)Logic Function Number: 54AIFG; (9)Memory Size: 512 Kb; (10)Memory Type: FLASH; (11)Number of ADC Inputs: 12; (12)Number of Bits: 32; (13)Number of I/O Lines: 68; (14)Number of PWM Channels: 4; (15)Number of Pins: 100; (16)Number of Timers: 2; (17)Operating Temperature Range: -40℃ to +85℃; (18)Oscillator Type: External Only; (19)Package / Case: LQFP; (20)Peripherals: ADC, RTC; (21)Program Memory Size: 3 Kb; (22)RAM Size: 32770 byte; (23)Supply Voltage Range: 4.5V to 5.25V; (24)Termination Type: SMD.
Features
TMP92FD54AIFG features: (1)4-Mbit (512-Kbyte) flash memory; (2)Interleaved access (2-1-1-1 clock access); (3)Chip programming time: 6 seconds; (4)Chip erase time: 12 seconds.

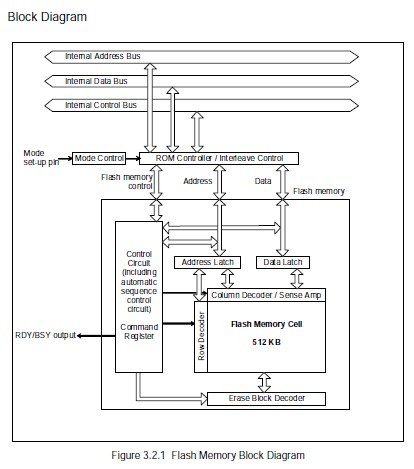

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||
|---|---|---|---|---|---|---|---|---|---|---|
 |
 TMP92FD54AIFG |
Toshiba |
32-bit Microcontrollers (MCU) TLCS/900H1 512K Flash MCU |
Data Sheet |
Negotiable |
|
||||
| Image | Part No | Mfg | Description | |
Pricing (USD) |
Quantity | ||||
|
TMP90C041 |
Other |
|
Data Sheet |
Negotiable |
|
||||
|
TMP90C041-15 |
Other |
|
Data Sheet |
Negotiable |
|
||||
|
TMP90C041A |
Other |
|
Data Sheet |
Negotiable |
|
||||
|
TMP90C041AF |
Other |
|
Data Sheet |
Negotiable |
|
||||
|
TMP90C041F |
Other |
|
Data Sheet |
Negotiable |
|
||||
|
TMP91C025FG |
Other |
|
Data Sheet |
Negotiable |
|
||||
