Product Summary

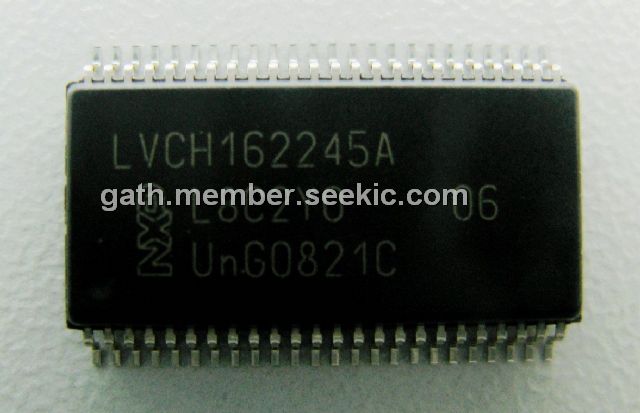

The 74LVCH162245ADL is a high-performance, low-power, low-voltage, Si-gate CMOS device, superior to most advanced CMOS compatible TTL families. Inputs of 74LVCH162245ADL can be driven from either 3.3 or 5 V devices. In 3-state operation, outputs can handle 5 V. These features allow the use of these devices as translators in a mixed 3.3 and 5 V environment. The 74LVCH162245ADL is a 16bit transceiver featuring non-inverting 3-state bus compatible outputs in both send and receive directions.

Parametrics

74LVCH162245ADL absolute maximum ratings: (1)supply voltage, VCC: 2.7 to 3.6V; (2)input voltage, VI: 0 to 5.5V; (3)output voltage, VO: 0 to VCCV; (4)ambient temperature, Tamb: -40 to +125℃; (5)input rise and fall times, tr, tf: 0 to 20ns/V.

Features

74LVCH162245ADL features: (1)5V tolerant inputs/outputs for interfacing with 5V logic; (2)Wide supply voltage range from 1.2 to 3.6V; (3)CMOS low power consumption; (4)MULTIBYTETM flow-through standard pin-out architecture; (5)Low inductance multiple power and ground pins for minimum noise and ground bounce; (6)Direct interface with TTL levels; (7)Inputs accept voltages up to 5.5V; (8)Integrated 30 W termination resistors; (9)High-impedance when VCC = 0V; (10)All data inputs have bushold; (11)Complies with JEDEC standard no. 8-1A; (12)Specified from -40 to +85℃ and -40 to +125℃.

Diagrams

74LVCH162245ADL Logic symbol

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity
74LVCH162245ADL
74LVCH162245ADL

NXP Semiconductors

Bus Transceivers 16-BIT 5V TOLERANT I/O BUFFER

Data Sheet

Negotiable
74LVCH162245ADL,11
74LVCH162245ADL,11

NXP Semiconductors

Bus Transceivers 16-BIT 5V TOLERANT

Data Sheet

0-1: $0.25
1-25: $0.23
25-100: $0.21
100-250: $0.19
74LVCH162245ADL:11
74LVCH162245ADL:11

NXP Semiconductors

Bus Transceivers 16-BIT 5V TOLERENT

Data Sheet

0-1: $0.46
1-25: $0.40
25-100: $0.35
100-250: $0.30
74LVCH162245ADL-T
74LVCH162245ADL-T

NXP Semiconductors

Bus Transceivers 16-BIT 5V TOLERENT I/O BUFFER

Data Sheet

Negotiable
