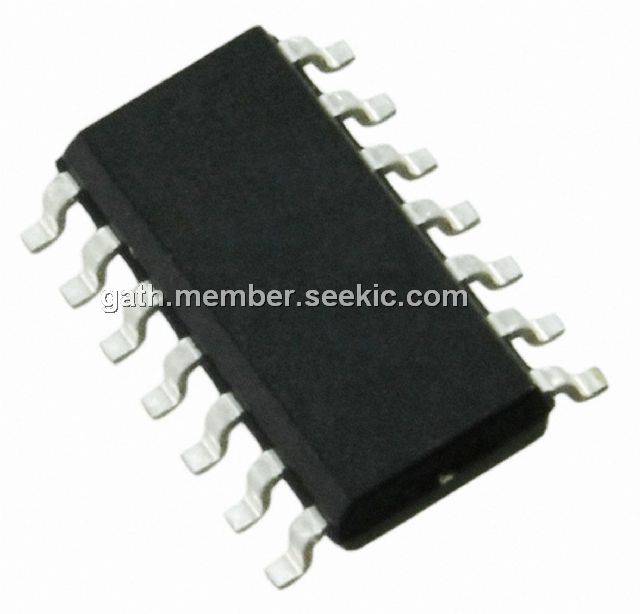

TLE7273-2GV26

Low Dropout Voltage Regulator, 14-SOIC, current consumption below 3μA, integrated window watchdog

Rated 5 Rating 5 | reviews | Write a review

Price:: US $2.50~3.00 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $2.50~3.00

PartNumber:: TLE7273-2GV26

Brand:: Infineon Technologies AG - Infineon | Pack: DIP | D/C: 08+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Ms. Sally Wei's store

(China (Mainland))

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2011-08-09

From Other Seller

Part Number:TLE7273-2GV26
US $2.50 - 3.00
EKXG401ELL6R8MJ16S

US $5.00 - 5.00 / Piece
(0) Remove
EKZE250ELL152MK25S

US $0.10 - 1.00 / Piece
(0) Remove
Quantity:

piece

Product Summary

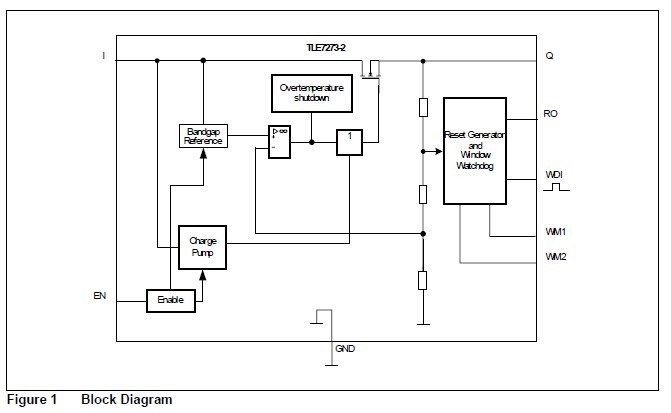

The TLE7273-2GV26 is a monolithic voltage regulator with integrated window watchdog and reset dedicated for microcontroller supplies under harsh automotive environment conditions. Due to its ultra low quiescent current, the TLE7273-2GV26 is perfectly suited for applications that are permanently connected to battery. In addition, the regulator can be shut down via the Enable input causing the current consumption to drop below 3μA. The TLE7273-2GV26 is equipped with an output current limitation and an overtemperature shutdown, protecting the device against overload, short circuit and over-temperature. It operates in the wide junction temperature range from -40℃ to 150℃.

Parametrics

TLE7273-2GV26 absolute maximum ratings: (1)Voltage, VI: -0.3 to 45V; (2)Voltage, permanent, VQ: -0.3 to 5.5V; (3)Voltage, t<10 s, VQ: -0.3 to 6.2V; (4)Voltage, VEN: -1 to 45V; (5)Current, IEN: -1 to 1mA; (6)Voltage, VRO: -1 to 7V; (7)Voltage, permanent, VWM1: -0.3 to 5.5V; (8)Voltage, t<10s, VWM1: -0.3 to 6.2V; (9)Current, IWM1: -5 to 5mA; (10)Voltage, Human Body Model (HBM): 3kV; (11)Voltage, Charged Device Model (CDM): 1.5kV; (12)Junction Temperature, Tj: -40 to 150℃; (13)Storage Temperature, Tstg: -50 to 150℃.

Features

TLE7273-2GV26 features: (1)Output Voltage 5V, 3.3V or 2.6V; (2)Output Voltage Tolerance ±2% Up To 180mA; (3)Ultra Low Quiescent Current Consumption < 36μA; (4)Enable Function; (5)Very Low Dropout Voltage; (6)Reset With Adjustable Power-On delay; (7)Window Watchdog With Current Dependent Deactivation; (8)Output Current Limitation; (9)Wide Operation Range Up To 45V; (10)Wide Temperature Range From -40℃ To 150℃; (11)Overtemperature Shutdown; (12)Green Product (RoHS compliant); (13)AEC Qualified.
