Product Summary

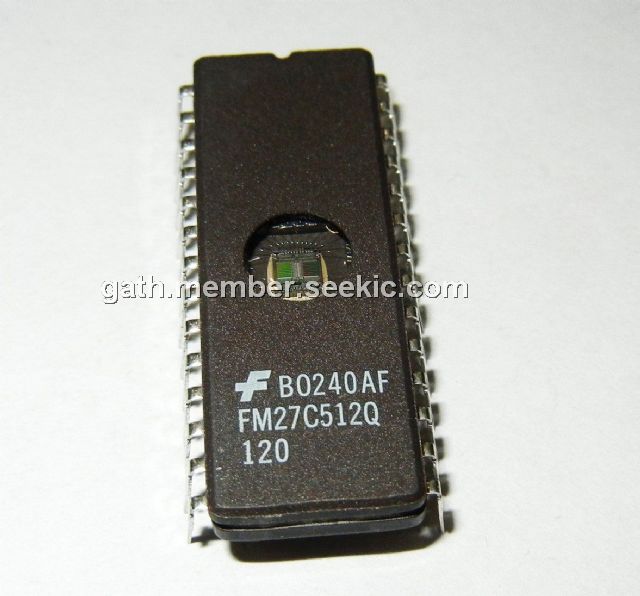

The FM27C512Q-120 is a high performance 512K UV Erasable Electrically Programmable Read Only Memory (EPROM). It is manufactured using the proprietary CMOS AMG EPROM technology of Fairchild for an excellent combination of speed and economy while providing excellent reliability. The FM27C512Q-120 provides microprocessor-based systems storage capacity for portions of operating system and application software. It offers a single chip solution for the code storage requirements of 100% firmwarebased equipment.
Parametrics
FM27C512Q-120 absolute maximum ratings: (1)Storage Temperature: -65℃ to +150℃; (2)All Input Voltages Except A9 with Respect to Ground: -0.6V to +7V; (3)VPP and A9 with Respect to Ground: -0.7V to +14V; (4)VCC Supply Voltage with Respect to Ground: -0.6V to +7V; (5)ESD Protection(MIL Std. 883, Method 3015.2): >2000V; (6)All Output Voltages with Respect to Ground: VCC + 1.0V to GND -0.6V.
Features
FM27C512Q-120 features: (1)High performance CMOS: 90 ns access time; (2)Fast turn-off for microprocessor compatibility; (3)Manufacturers identification code; (4)JEDEC standard pin configuration: 28-pin PDIP package; 32-pin chip carrier; 28-pin CERDIP package.

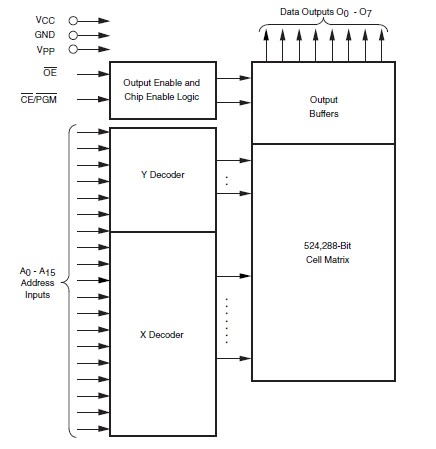

Diagrams
 |
