Product Summary

The STM32W108CBU64 is a fully integrated System-on-Chip that integrates a 2.4 GHz, IEEE 802.15.4-compliant transceiver, 32-bit ARM® Cortex-M3 microprocessor, Flash and RAM memory, and peripherals of use to designers of ZigBee-based systems.The STM32W108CBU64 offers a number of advanced power management features that enable long battery life. A high-frequency internal RC oscillator allows the processor core to begin code execution quickly upon waking. Various deep sleep modes are available with less than 1 μA power consumption while retaining RAM contents. To support user-defined applications of the STM32W108CBU64, on-chip peripherals include UART, SPI, TWI, ADC and general-purpose timers, as well as up to 24 GPIOs. Additionally, an integrated voltage regulator, power-on-reset circuit, and sleep timer are available.

Parametrics

STM32W108CBU64 absolute maximum ratings: (1)Regulator input voltage (VDD_PADS): -0.3 +3.6 V; (2)Analog, Memory and Core voltage (VDD_24MHZ, VDD_VCO,; (3)VDD_RF, VDD_IF, VDD_PADSA, VDD_MEM, VDD_PRE, VDD_SYNTH, VDD_CORE): -0.3 +2.0 V; (4)Voltage on RF_P,N; RF_TX_ALT_P,N -0.3 +3.6 V RF Input Power (for max level for correct packet reception see RX signal into a lossless balun:+15 dBm; (5)Voltage on any GPIO (PA[7:0], PB[7:0], PC[7:0]), SWCLK, NRST, VREG_OUT:-0.3, VDD_PADS +0.3 V; (6)Voltage on BIAS_R, OSCA, OSCB: -0.3, VDD_PADSA +0.3 V.

Features

STM32W108CBU64 features: (1)Complete system-on-chip: 32-bit ARMR Cortex.-M3 processor; 2.4 GHz IEEE 802.15.4 transceiver & lower MAC; 128-Kbyte Flash, 8-Kbyte RAM memory; AES128 encryption accelerator; Flexible ADC, SPI/UART/TWI serial communications, and general-purpose timers; 24 highly configurable GPIOs with Schmitt trigger inputs; (2)Industry-leading ARMR Cortex-M3 processor: Leading 32-bit processing performance; Highly efficient ThumbR-2 instruction set; (3)Operation at 6, 12 or 24 MHz; Flexible nested vectored interrupt controller; (4)Low power consumption, advanced management: Receive current (w/ CPU): 27 mA; Transmit current (w/ CPU, +3 dBm TX): 31 mA; Low deep sleep current, with retained RAM and GPIO: 400 nA/800nA with/without sleep timer; Low-frequency internal RC oscillator for low-power sleep timing High-frequency internal RC oscillator for fast (100 μs) processor start-up from sleep; (5)Exceptional RF performance: Normal mode link budget up to 102 dB; configurable up to 107 dB;-99 dBm normal RX sensitivity; configurable to -100 dBm (1% PER, 20 byte packet); +3 dB normal mode output power; configurable up to +7 dBm; (6)Robust WiFi and Bluetooth coexistence.

Diagrams

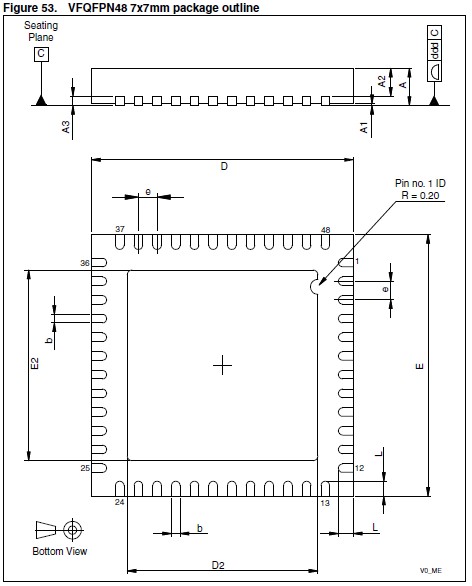

STM32W108CBU64 pin connection

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity
STM32W108CBU64TR
STM32W108CBU64TR

STMicroelectronics

RF Microcontrollers (MCU) 32BIT ARM Cortex M3 IEEE 802.15.4 64kB

Data Sheet

0-1740: $2.05
1740-2500: $1.89
