Product Summary

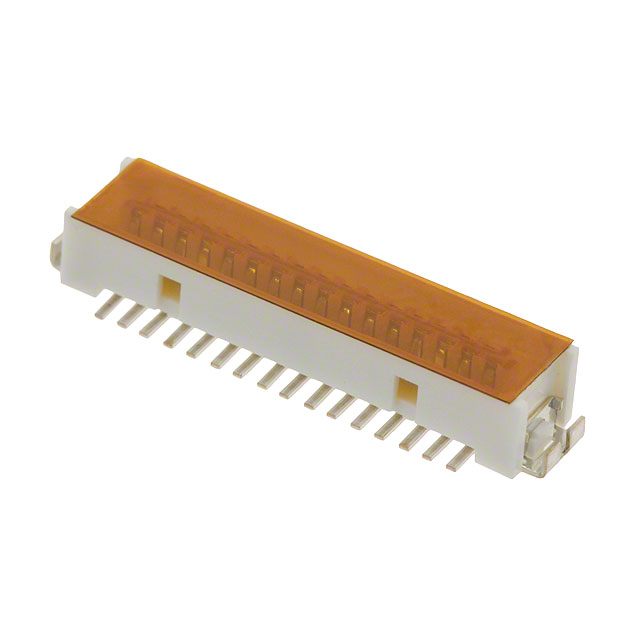

The DF9-31P-1V is a 1mm Pitch SMT Board to Board Connector.
Parametrics
DF9-31P-1V absolute maximum ratings: (1)Current rating: 0.5A; (2)Operating Temperature Range: -45 to +125℃; (3)Storage Temperature Range: -10 to +60℃; (4)Voltage rating: 150V; (5)AC Operating Humidity Range: 40 to 80%; (6)Storage Humidity Range:40 to 70%.
Features
DF9-31P-1V features: (1)Compliant with the VESA FPDI-1 Standard Interface Connector; (2)Perfect Mis-insertion Prevention; (3)Equipped with Easy Lock Mechanism; (4)Smooth Insertion and Extraction Feeling; (5)Setting Two Type Platings as Standard.
Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 DF9-31P-1V(20) |
Hirose Connector |
Board to Board / Mezzanine Connectors STR SMT BRD 2 BRD 31 CONT HDR |
Data Sheet |
Negotiable |
|
||||||||||||
 |
DF9-31P-1V(31) |
Hirose Connector |
Board to Board / Mezzanine Connectors 31P M STRT HEADER SMT BRD MNT TIN PLT |
Data Sheet |
|
|
||||||||||||
 |
DF9-31P-1V(69) |
Hirose Connector |
Board to Board / Mezzanine Connectors 1.0MM V SMT RECPT 31P GOLD PLATING |
Data Sheet |
|
|
||||||||||||
|
DF9-31P-1V(32) |
Hirose Connector |
Board to Board / Mezzanine Connectors 1.0MM V SMT RECPT 31P TIN PLATING |
Data Sheet |
|
|
||||||||||||
