Product Summary

The STTH8R06FP, which is using ST 600V technology, is specially suited as boost diode in continuous mode power factor corrections and hard switching conditions. The STTH8R06FP is also intended for use as a free wheeling diode in power supplies and other power switching applications.

Parametrics

STTH8R06FP absolute maximum ratings: (1)Repetitive peak reverse voltage, VRRM: 600V; (2)RMS forward current, IF(RMS): 30A; (3)Average forward current, δ = 0.5, IF(AV): 8A; (4)Surge non repetitive forward current, tp = 10ms Sinusoidal, IFSM: 80A; (5)Storage temperature range, Tstg: - 65 + 175℃; (6)Maximum operating junction temperature, Tj: + 175℃.

Features

STTH8R06FP features: (1)Ultrafast switching; (2)Low reverse recovery current; (3)Reduces switching losses; (4)Low thermal resistance.

Diagrams

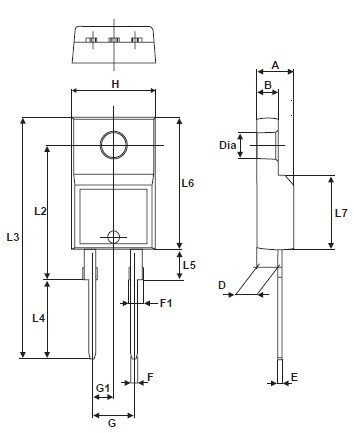

STTH8R06FP PACKAGE MECHANICAL DATA

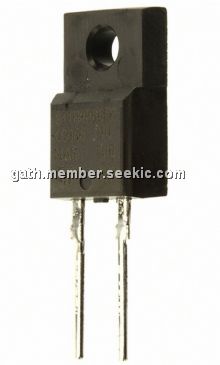

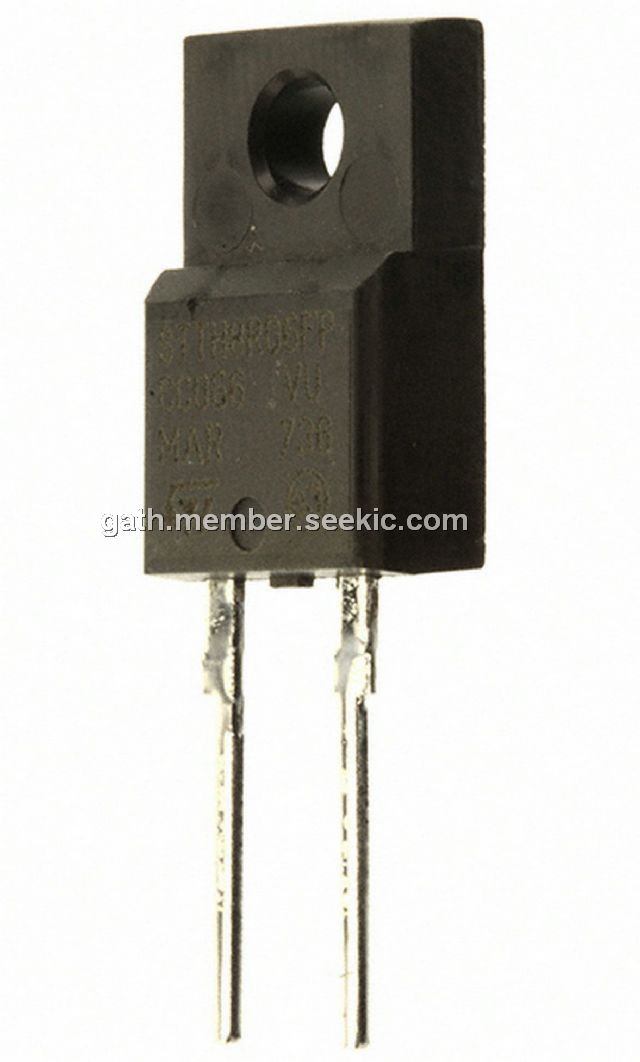

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
STTH8R06FP
STTH8R06FP
STMicroelectronics
Rectifiers 8.0 Amp 600 Volt
Data Sheet
0-1: $0.97
1-10: $0.87
10-100: $0.78
100-250: $0.72
Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
STTH10002TV1
STTH10002TV1
STMicroelectronics
Rectifiers ULTRAFAST RECOVERY DIODE
Data Sheet
0-1: $10.15
1-10: $9.84
10-100: $9.20
100-250: $8.96
STTH10002TV2
STTH10002TV2
STMicroelectronics
Rectifiers ULTRAFAST RECOVERY DIODE
Data Sheet
0-1: $10.15
1-10: $9.84
10-100: $9.20
100-250: $8.96
STTH1002CB
STTH1002CB
STMicroelectronics
Rectifiers 2x8 Amp 200 Volt
Data Sheet
0-1: $0.43
1-10: $0.38
10-100: $0.32
100-250: $0.30
STTH1002CB-TR
STTH1002CB-TR
STMicroelectronics
Rectifiers 2x8 Amp 200 Volt
Data Sheet
0-1700: $0.27
1700-2500: $0.25
2500-5000: $0.23
5000-10000: $0.22
STTH1002CBY-TR
STTH1002CBY-TR

DIODE ULT FAST 200V 8A DPAK
Data Sheet
0-1: $0.74
1-10: $0.65
10-25: $0.59
25-100: $0.51
100-250: $0.45
250-500: $0.40
500-1000: $0.32
STTH1002C
STTH1002C
Other

Data Sheet
Negotiable
